Software for creating textured meshes from 3D laser scans.

Kohera3D Mesh features:

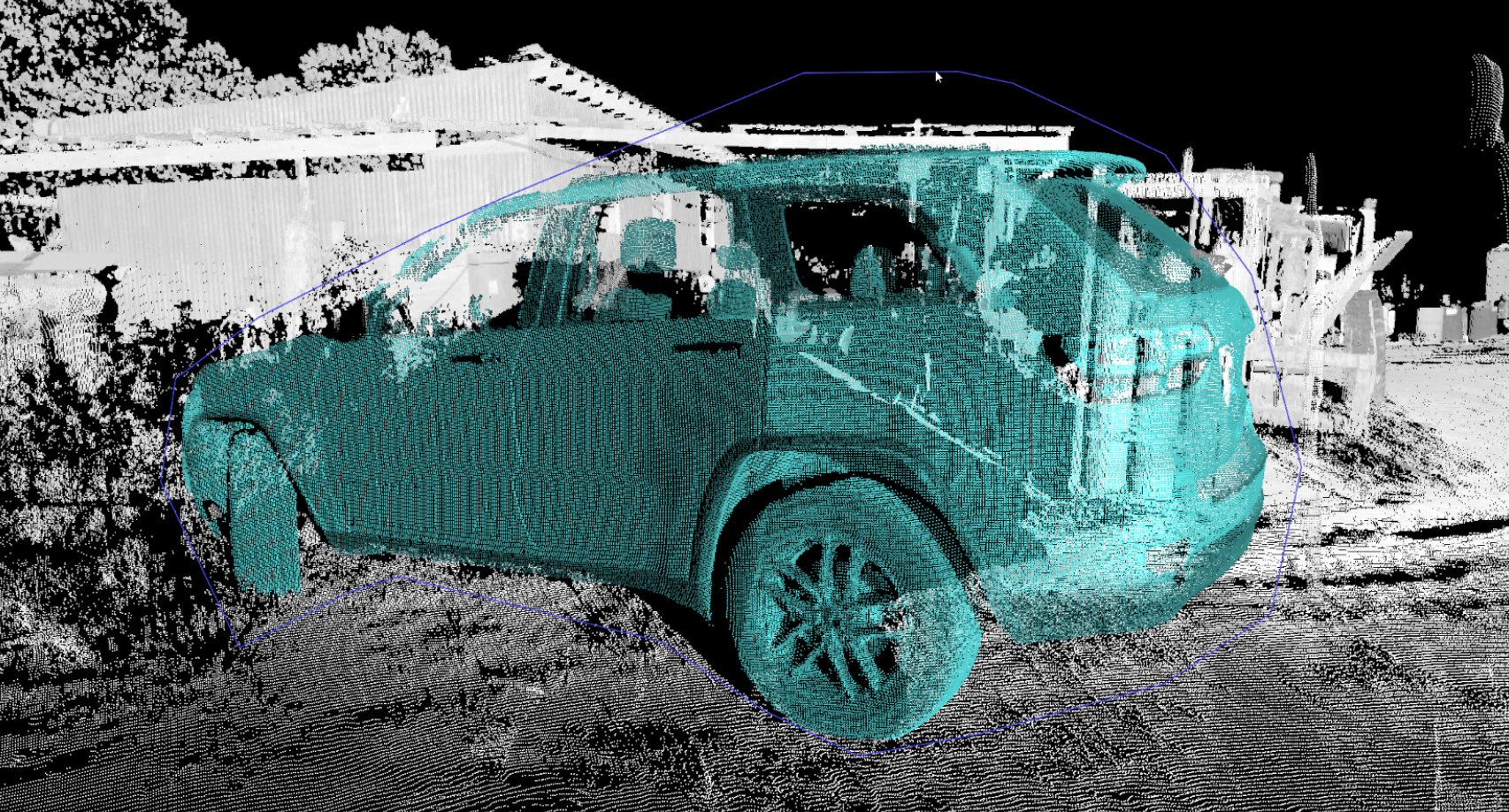

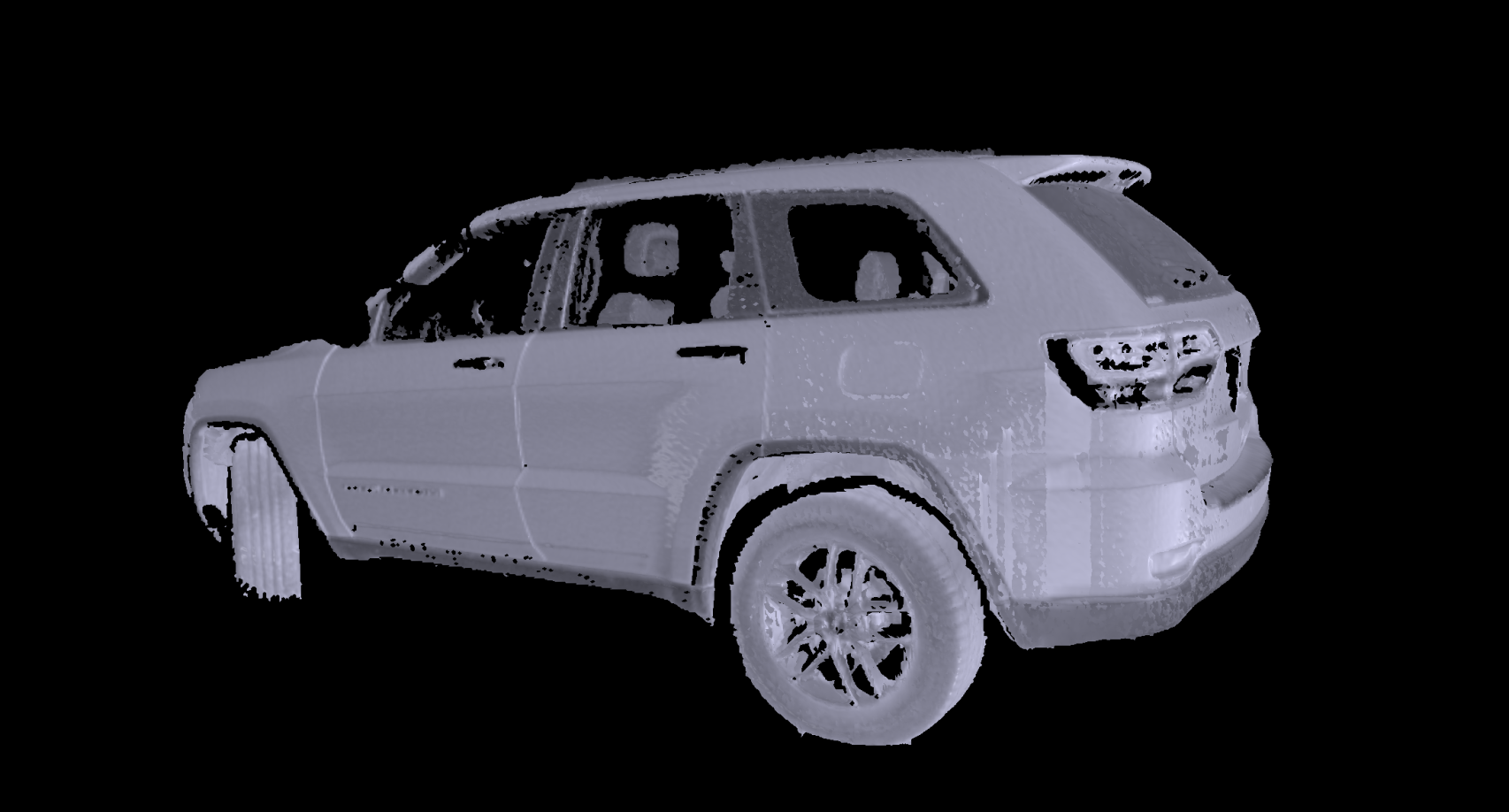

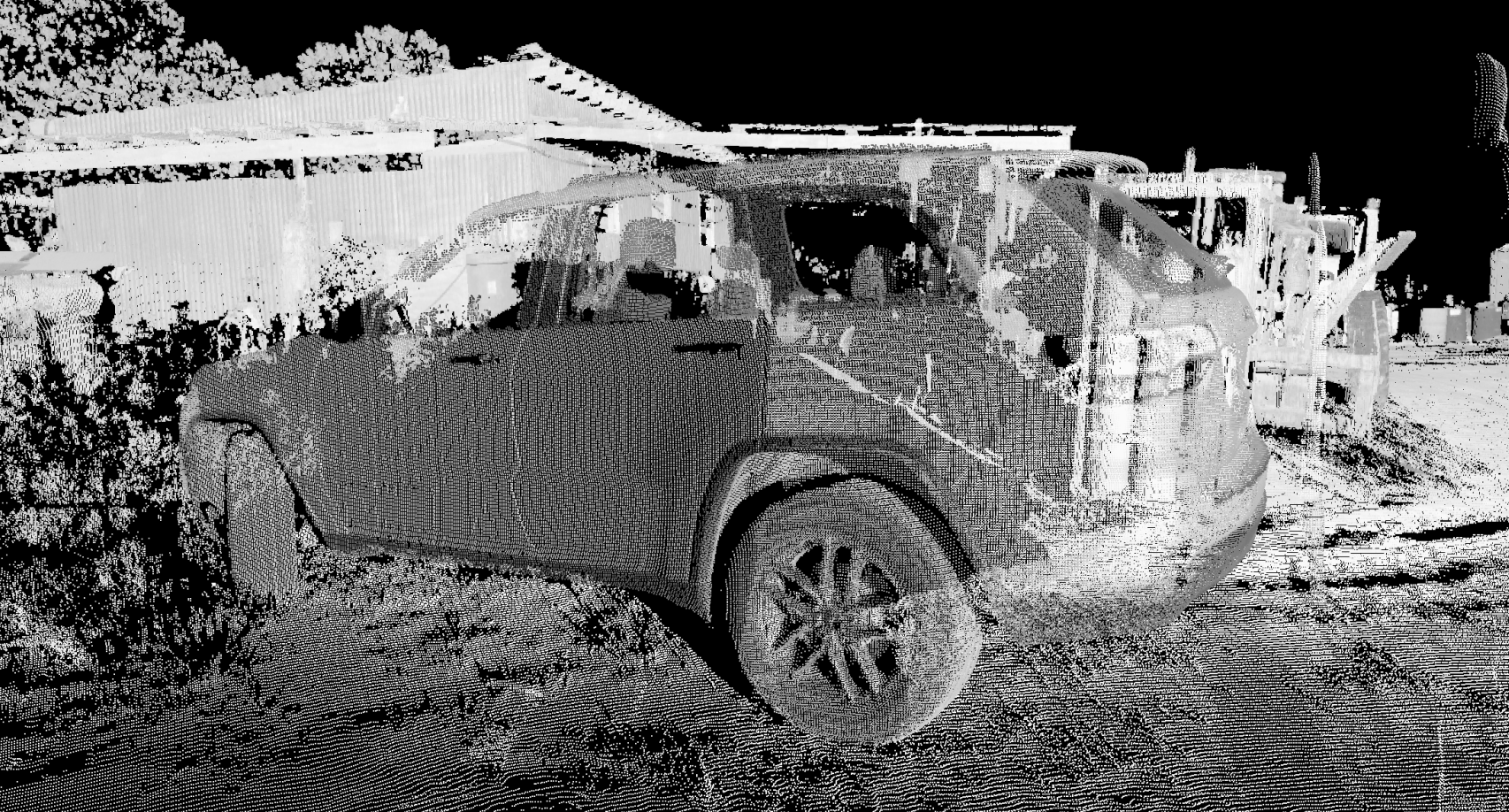

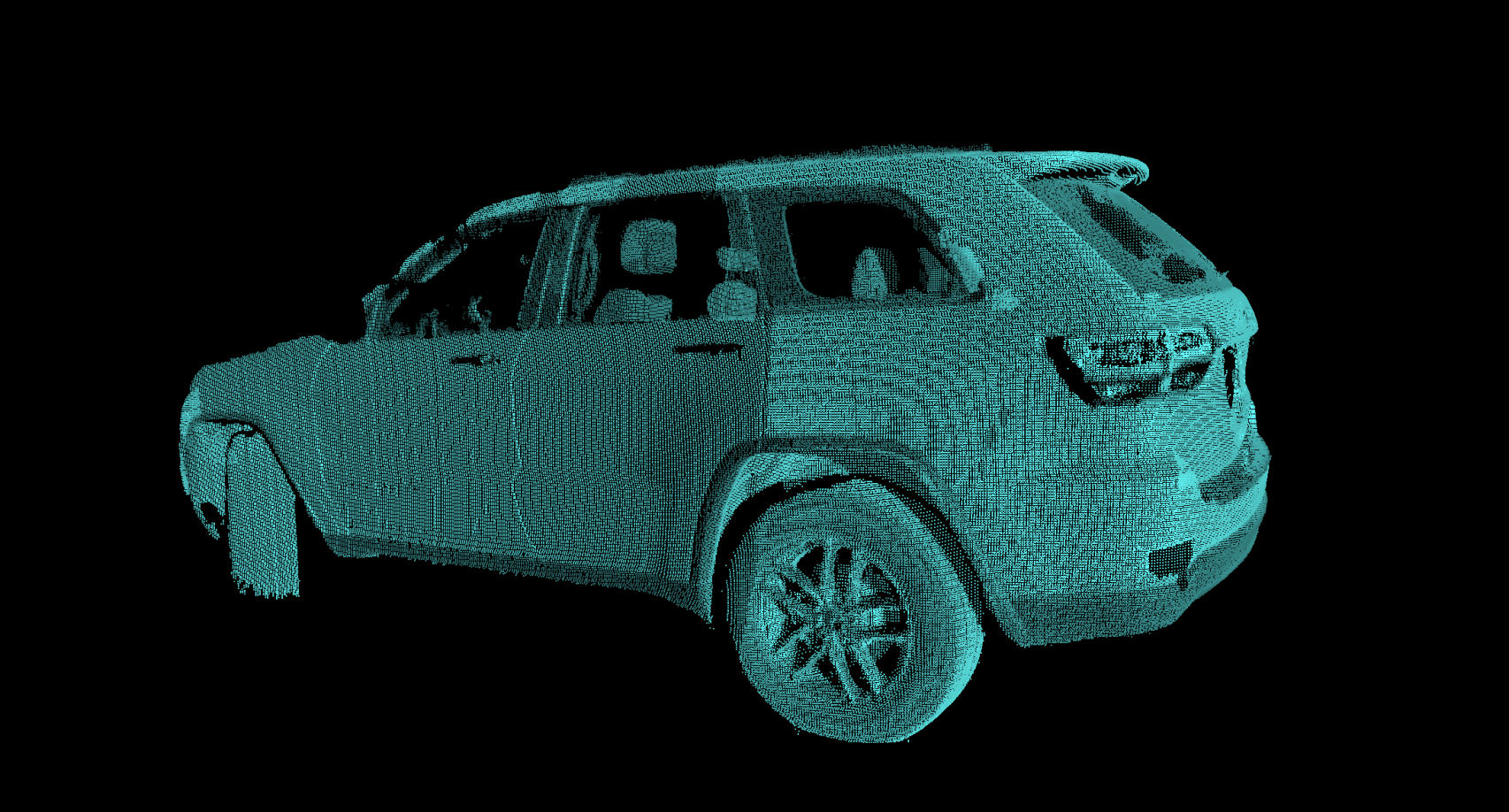

Create textured meshes from a point cloud.

Export meshes as obj files.

Use any structured E57, PTX, or FARO scan file.

A standalone program that does not require a CAD program license.

Apply "volume filters" to limit displayed data to spherical, rectangular, cylindrical, or planar regions.

"Spotlight" feature to maximize detail in a specific region, even while navigating.

Take measurements in the scan data. Choose from metric, imperial, and survey units.

Adjustable scan density.

Adjustable point size.

Adjustable transparency.

Import OBJ models.

Export scan selections and data volumes.

Create and save scan data projects.

Perform enhanced scan filtering of mixed pixels.

Edge and distance filters.

View Cyclone registration constraints.

Apply Cyclone registrations to your scan projects.

System Requirements

Optimum Performance Requirements:

Operating System: Microsoft Windows 10.
Processor: 3.0 GHz Quad Core with Hyper-Threading or better
Memory: 32 GB or more.
Graphics card: Nvidia GeForce 970, or ATI 7850 or better with at least 4 GB memory and latest drivers.
Hard Disk Space: 1 TB internal or E-SATA connected external hard drive.

Minimal System Requirements (sufficient for viewing and basic functions):

Operating System: Microsoft Windows Vista or higher.
Processor: 2.5 GHz Dual Core processor or better.
Memory: 8 GB minimum for usage of most features; 4 GB for basic viewing only.
Graphics card: Nvidia GeForce 460 or better with updated drivers.
Hard Disk Space: 50 MB available internal hard drive space for program files; 10 GB internal or external hard drive space for project files.

Note: Large projects will require more space, up to several hundred GB for scan data alone.

End User License Agreement

Third Party Software

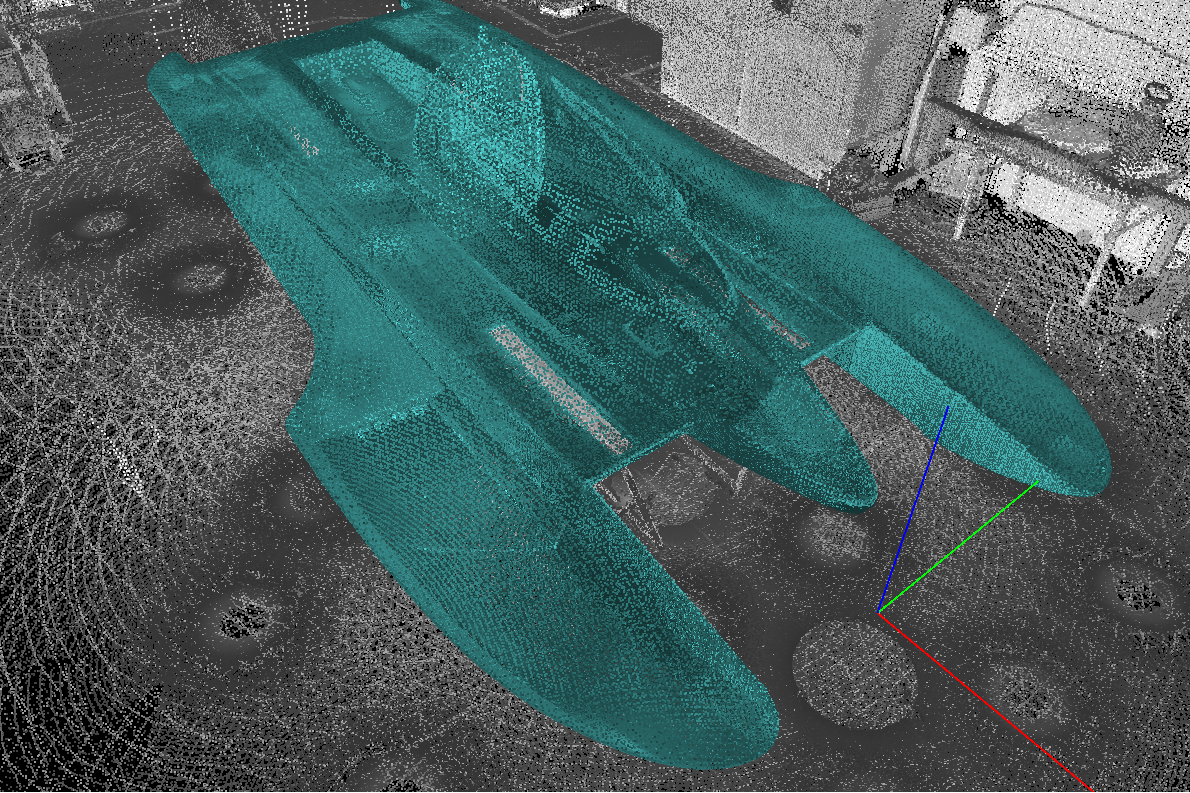

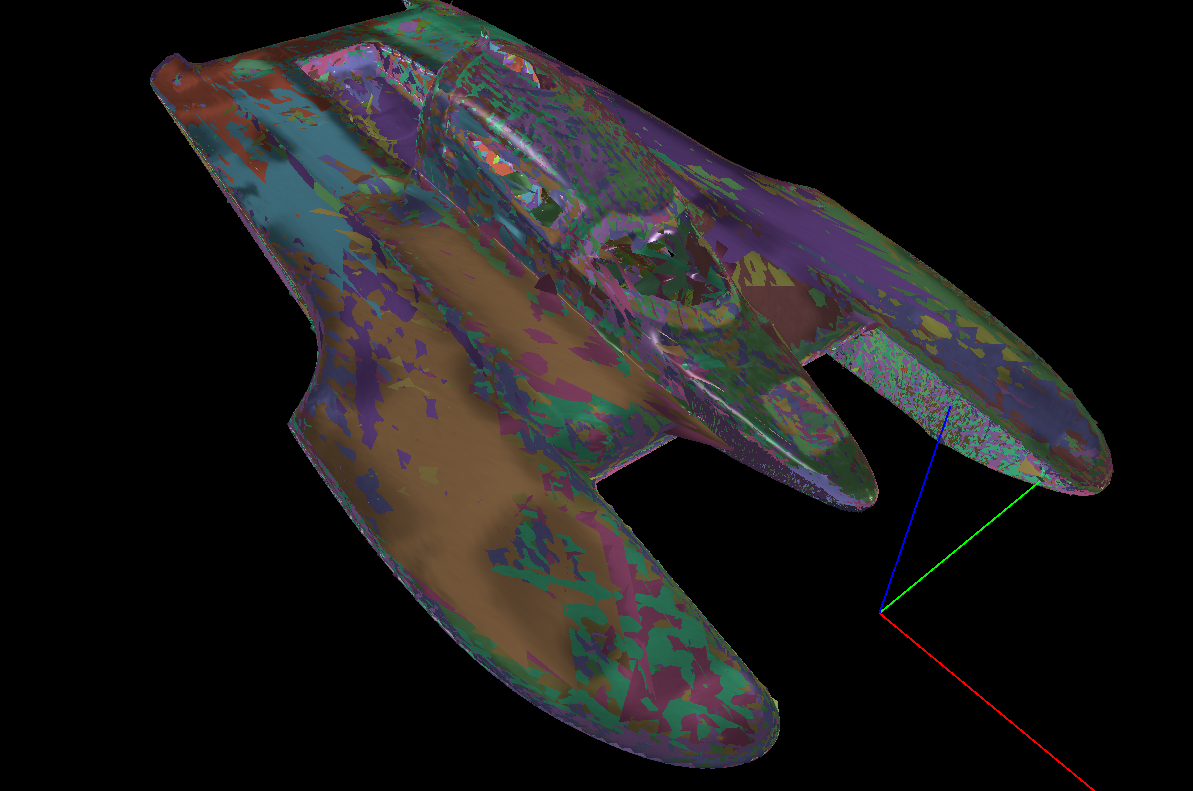

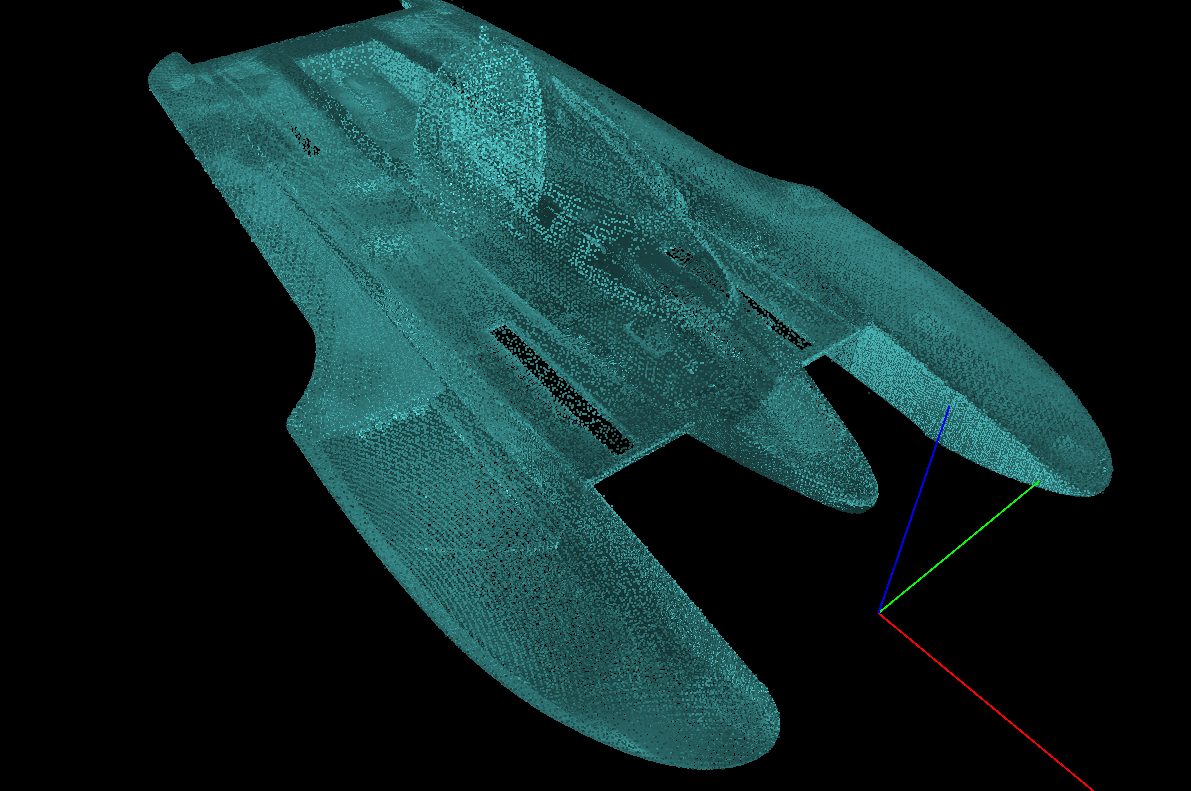

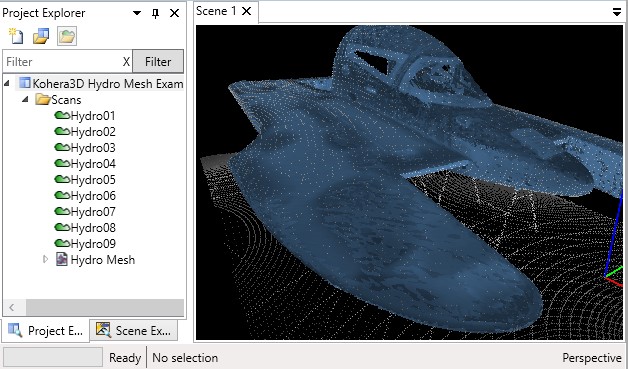

Download a sample Mesh project with scan data for testing purposes.

K3D Mesh Hydro Project Sample.zip
